Optimized High Payload Robotic Arms for Heavy Industrial Automation: The CHAIFU BIOTIC™ Advantage
2026-09-10
Published by CHAIFU Global | Focus: Industrial Robotics & Automation Solutions
Executive Summary: Solving the Heavy-Duty Automation Dilemma
Modern manufacturing demands an unprecedented balance of speed, payload capacity, and spatial efficiency. For heavy-duty applications—ranging from automotive stamping to heavy metal handling and packaging—traditional industrial robots often force manufacturers to compromise between high payload capacity and cycle time efficiency.
The CHAIFU BIOTIC™ High Payload Robot Series addresses these critical bottleneck challenges. Engineered with a lightweight structural design coupled with high-torque AC servo drives, the BIOTIC series provides up to 210 kg payload capacities without sacrificing operational speed or precision.
In this guide, we explore how optimizing your production line with high-payload robotic arms boosts throughput, reduces TCO (Total Cost of Ownership), and enhances plant versatility.

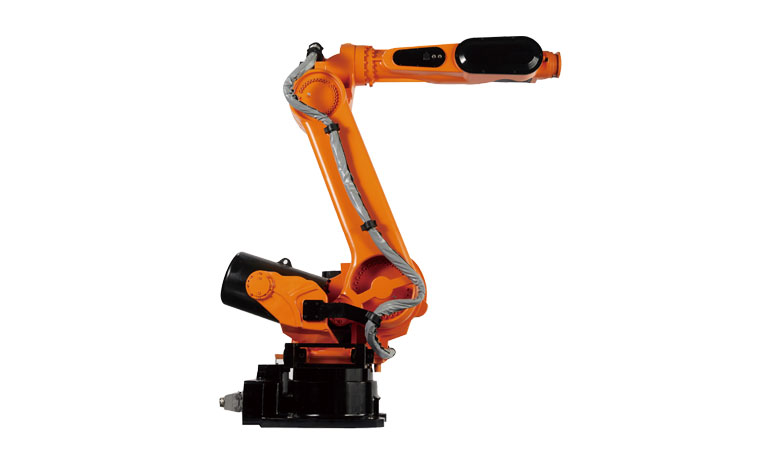

Key Technical Specifications of CHAIFU BIOTIC™ (SF210-K2650)
To help system integrators and plant engineers evaluate mechanical fit, below is a comprehensive technical performance breakdown of the flagship BIOTIC SF210-K2650 model:
| Parameter / Feature | Specification Details | Industrial Benefit |
| Payload Capacity | 210 kg | Heavy part handling & end-of-arm tooling (EOAT) versatility |
| Max Reach / Radius | 2,650 mm | Expanded envelope, ideal for multi-station tending |
| Degrees of Freedom | 6-Axis Vertically Articulated | Maximum dexterity for complex motion paths |
| Repeatability | ±0.3 mm | Consistent accuracy in assembly, welding, & spraying |
| Ingress Protection Class | IP65 (Full Dust & Water Jet Protection) | Reliable 24/7 operation in humid/harsh environments |
| Max Axis Speed (J1–J6) | J1: 110°/s | J5: 206°/s | J6: 300°/s | Optimized acceleration curves to shorten cycle times |
| Allowable Torque (J4–J6) | J4/J5: 1301 N.m | J6: 706 N.m | Superior moment of inertia for heavy offset loads |
| Power Consumption | 7.5 kVA | Energy-efficient servo control system |
4 Core Technological Innovations Driving the BIOTIC™ Series
1. High Power-to-Weight Ratio Architecture
Traditional 200kg+ class robots suffer from excessive inertial mass. The BIOTIC series uses a refined lightweight structural design. By optimizing casting geometry and mass distribution across the 6 axes, the arm achieves extreme rigidity while reducing structural dead weight, directly translating to faster axis acceleration and reduced gear stress.
2. Proprietary Core Components & Cost Optimization
CHAIFU independently develops and manufactures the three core mechanical/electrical components (controllers, servo drives, and key transmission elements). This vertical integration provides two key operational benefits:
- Lowest Total Acquisition Cost: Direct control over manufacturing minimizes unit costs without sacrificing industrial grade durability.
- Optimized Signal Immunity: Advanced software filters eliminate signal noise in noisy electromagnetic factory environments.
3. Advanced Intelligent Programming & Sensor Integration
Modern smart factories demand adaptive robotics. The BIOTIC platform natively supports:
- Vision-Guided Robotics (VGR): Real-time tracking for conveyor picking and dynamic sorting.
- Force-Torque Sensing: Precision force control for tactile assembly, deburring, and surface grinding.
- Autonomous Path Optimization: In-house developed software suites that automatically tailor motion trajectories to reduce cycle times.
4. Rugged IP65 Protection for Extreme Factory Environments
Humidity, ambient dust, and coolants often cause premature hardware failures in heavy industry. Featuring an IP65 enclosure rating, the BIOTIC series is built for continuous 24/7 wet and dusty environment operation across working temperatures from 0°C to 45°C (up to 95% RH).
Primary Industrial Applications
High-payload articulated robots are the workhorses of automated heavy manufacturing. The CHAIFU BIOTIC™ series excels across multiple key industries:
┌─ Metal Industry (Stamping & Palletizing) ├─ Machinery Tending (CNC Loading/Unloading)CHAIFU BIOTIC™ (210kg) ┼─ Surface Finishing (Sanding, Spraying & Glazing) ├─ Packaging & Logistics (High-speed Picking & Material Transfer) └─ Material Joining (Submerged Arc Welding & Gluing)
- Metal Fabrication & Stamping Press Tending: High wrist torque allow the SF210-K2650 to transfer heavy sheet metal panels between press stations at high speeds.
- CNC Machine Tending & Handling: Safely transfers heavy engine blocks, castings, and structural steel parts with a ±0.3 mm positional precision.
- Automated Palletizing & Material Handling: Maneuvers stacked crates, drums, or heavy industrial goods, maximizing vertical warehouse height and throughput.
- Surface Processing & Spraying: Maintains continuous speed profiles required for consistent sanding, glazing, and industrial gluing applications.
How to Select the Right High-Payload Industrial Robot
When evaluating a 200kg-class industrial robot for your automation facility, consider the following parameters:
- Calculate Dynamic Load vs. Static Load: Account for the tool weight (EOAT) plus the maximum payload weight. Check the allowable moment of inertia (e.g., J4/J5 at 138 kg·m² for BIOTIC) to ensure offset forces won't overload wrist reduction gears.
- Evaluate Workcell Footprint: The BIOTIC SF210-K2650 features a compact base footprint ($750 \times 520 \text{ mm}$), saving floor space while offering an expansive 2,650 mm working envelope.
- Verify Software Compatibility: Ensure the robot controller seamlessly supports your industry-standard protocols (EtherCAT, Modbus, PLC interfaces, Vision Systems).
Frequently Asked Questions (FAQ)
Q1: What makes the CHAIFU BIOTIC series different from standard high payload robots?
A: The BIOTIC series combines a optimized lightweight structural design with independently developed core components. This provides high-speed 6-axis performance, IP65 protection, and intelligent vision/force sensor integration at an industry-leading total cost of ownership.
Q2: What is the maximum payload and reach of the BIOTIC SF210-K2650?
A: The SF210-K2650 model supports a maximum payload of 210 kg with a maximum reach radius of 2,650 mm and a repeatability of ±0.3 mm.
Q3: Can the BIOTIC series operate in high-humidity or wet environments?
A: Yes. The BIOTIC series comes standard with an IP65 protection rating, enabling 24/7 continuous operation in environments with up to 95% relative humidity and ambient temperatures between 0°C and 45°C.
Upgrade Your Heavy Automation Line Today
Ready to optimize your high-payload handling, welding, or assembly line?
