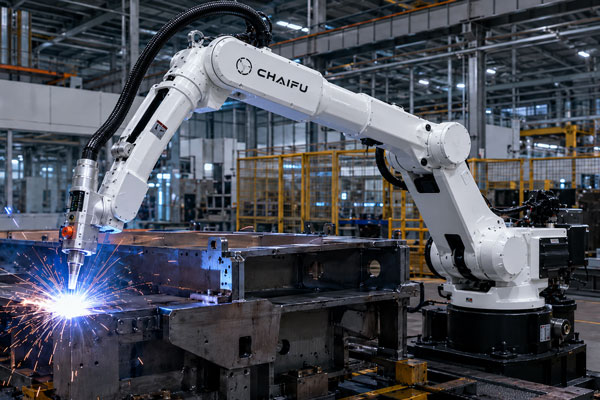

High-Precision Industrial Welding Robot for Automated Metal Fabrication
2026-09-07
Enhance Welding Efficiency, Reduce Labor Costs, and Achieve Superior Weld Quality with CHAIFU 6-Axis Arc Welding Robotic Arms.
Key Value Highlights
l ±0.05 mm Repeatability: Powered by LIKEPRECISION RV reducers for ultra-smooth weld seams.
l Hollow Wrist Design: Built-in cables prevent interference, reduce wear, and shorten cycle times.
l IP65 Heavy-Duty Protection: Reliable 24/7 continuous operation in harsh industrial environments.
l Global Certifications: Certified with EU CE and Chinese CR quality and safety standards.
Call to Action
[ Request Factory Direct Price ]
[ Download Technical Datasheet (PDF) ]
Why Upgrade to CHAIFU Industrial Welding Automation?
Challenge in Traditional Welding | CHAIFU Industrial Welding Robot Solution | Business Benefit |
High Labor Costs & Skilled Welder Shortage | Automated 6-axis precision movement for 24/7 continuous operation | Drastically lowers production cost per unit |
Inconsistent Weld Quality & High Rework Rates | Ultra-precise ±0.05 mm repeatability with smooth trajectory control | Zero-defect weld seams & reduced material waste |
Cable Entanglement in Complex Angle Welding | Innovative Hollow Wrist design with internal torch cabling | Longer cable life & faster cycle times |
Harsh Environment Hazards (Dust, Heat, Moisture) | IP65 protection rating with noise-elimination signal control | Maximum uptime with minimal maintenance |
Advanced Engineering Built for Arc & Laser Welding
1. Precision-Driven Motion Control (LIKEPRECISION Technology)
Our industrial welding robots utilize proprietary LIKEPRECISION RV reducers and high-torque AC servo motors. With a motion repeatability of ±0.05 mm, CHAIFU robotic arms ensure flawless arc and laser welding on stainless steel, carbon steel, and aluminum structures.
2. Innovative Hollow Wrist Design
The hollow mechanical wrist allows the welding torch cable to pass through the arm interior. This eliminates cable whipping, prevents interference with workpieces and fixtures, and allows flexible 360-degree orientation in tight spatial environments.
3. Versatile Mounting Options for Flexible Integration
Adapt to any workshop floor plan. CHAIFU welding robots can be installed on floors, walls, ceilings, or inverted at custom angles, saving valuable floor space and seamlessly integrating into existing CNC machine-tending or conveyor systems.
CHAIFU Industrial Welding Robot Series Specifications
Model | Radius / Reach | Payload | Repeatability | Protection | Mounting Position |
SF6-C1400 / C1400X | 1,440 mm | 6 kg | ±0.05 mm | IP65 | Floor, Wall, Ceiling |
SF6-C2080 / C2080X | 2,080 mm | 6 kg | ±0.05 mm | IP65 | Floor, Wall, Ceiling |
SF6-C1400P / C2080P | 1,440 / 2,080 mm | 6 kg | ±0.05 mm | IP65 | Specialized Workstation |
Turnkey Welding Solutions for Industry Applications
l Steel Structure & Fabrication: High-speed MIG/TIG arc welding for beam assembly, frames, and enclosure structures.
l Automotive & Machinery Parts: Heavy-duty cycle welding with high consistency for chassis, exhaust systems, and hydraulic components.
l Sheet Metal & Metal Furniture: Precision laser and arc welding with minimal heat-affected zones to prevent workpiece deformation.
l Cutting & Plasma Processing: Integrated torch control for automated cutting, trimming, and beveling.
Request a Free Automation Proposal & Direct Factory Quote
Fill out the form below to get technical CAD drawings, ROI analysis, and factory-direct pricing within 24 hours.
FAQ Section
Q1: What is the repeatability accuracy of a CHAIFU industrial welding robot?
A: CHAIFU industrial welding robots deliver an ultra-high repeatability accuracy of ±0.05 mm, powered by precision RV reducers and AC servo drives to ensure high weld seam consistency.
Q2: Can CHAIFU welding robots be integrated with third-party welding power sources?
A: Yes, CHAIFU welding robots feature open communication protocols and can easily interface with major global welding machine brands (such as Miller, Lincoln, Megmeet, and Fronius) for MIG, MAG, TIG, and laser welding.
Q3: What international quality certifications do CHAIFU welding robots have?
A: CHAIFU industrial welding robots are fully certified under EU CE standards and China CR standards, meeting global quality, safety, and electromagnetic compatibility requirements.
l Direct Email: contact@chaifuglobal.com
l Global Services: Technical Consultation | On-site Installation Support | Original Spare Parts Supply
