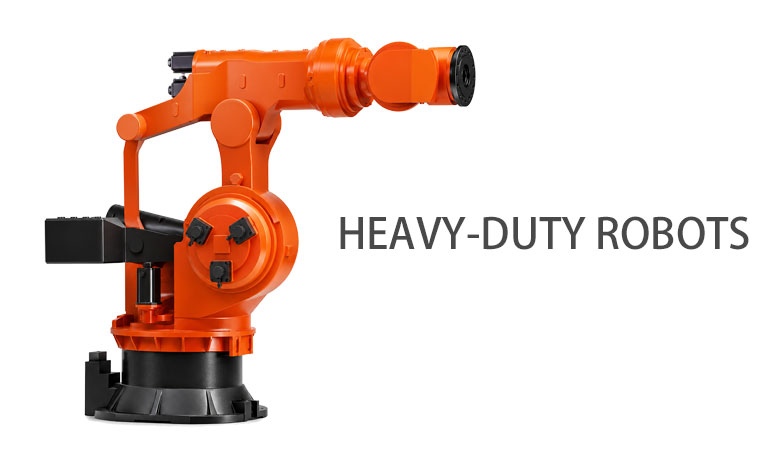

High-Payload Heavy-Duty Robots: Optimizing Precision and Duty Cycles in Extreme Automation
2026-08-21
In high-capacity manufacturing, heavy-duty robots are the cornerstone of throughput efficiency. Handling payloads ranging from 300kg to over 6000kg, these advanced industrial manipulators execute heavy material handling, structural welding, and large-scale assembly under high thermal and physical stress.
To maximize operational uptime and path accuracy, engineers and plant managers must align robot selection with dynamic load requirements and planetary/RV reducer torque profiles.
Core Engineering Specifications & Performance Benchmarks
When evaluating heavy-duty robotic systems for severe-duty environments, key hardware parameters determine long-term ROI and structural integrity:
| Performance Parameter | Standard Heavy-Duty Spec | High-Efficiency Optimized Spec | Operational Advantage |
| Payload Capacity | 300kg- 800kg | 1,200 kg- 6,000kg | Handles extreme structural steel and automotive chassis |
| Position Repeatability | ±0.08mm | ±0.5mm-±1mm | Eliminates misalignment in high-precision heavy welding |
| Maximum Reach Radius | 2,700 mm- 3,100mm | 4,600mm (Extended Envelope) | Maximizes working envelope without secondary linear tracks |
| Protection Rating | IP65 (Base Unit) | IP67 / Foundry Grade (Wrist & Body) | Withstands abrasive dust, high humidity, and coolant spray |
Key Operational Advantages of Heavy-Duty Robotic Integration
Optimized Cycloidal & RV Reducer Longevity: Utilizing precision-engineered high-torque gearboxes reduces rotational backlash and prevents premature gear teeth degradation during violent acceleration phases.
Dynamic Torque Control & Deflection Mitigation: Advanced motion control software calculates arm moment of inertia in real time, compensating for structural deflection under maximum payload capacity.
Predictive Maintenance Sensor Arrays: Integrated vibration and thermal monitoring sensors detect mechanical fatigue early, shifting maintenance from reactive downtime to scheduled service.
Continuous Duty Thermal Dissipation: Heavy-duty servo motor drives designed for 100% duty cycles prevent thermal overload shutdowns during multi-shift continuous operation.
Industry Applications
Automotive Sub-Assembly: Transporting and positioning unibody frames and battery packs for electric vehicles with sub-millimeter precision.
Foundry and Forging Automation: Moving white-hot metal castings in extreme ambient temperatures where manual labor poses critical safety risks.
Structural Steel Fabrication: Executing heavy multi-pass welding on large I-beams, ship components, and pressure vessels.
